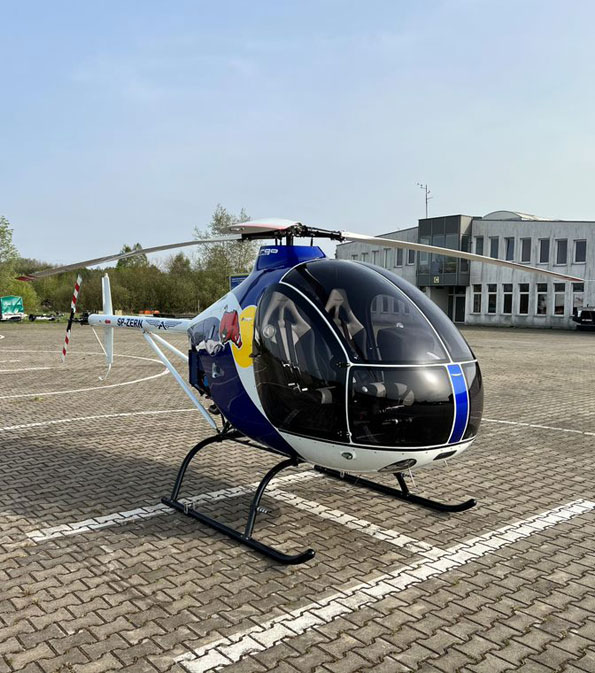

ARGO AH 2.2 is a two seater helicopter 600 kg MTOW which is redefining the route to market for innovative helicopters. Manufaktura Lotnicza has pioneered a reimagined approach to delivering and supporting safe, exciting private light helicopters.
ARGO AH 2.2 has a three-blade nose rotor, which guarantees incredible stability in flight and excellent climb – up to 15 m/s. Thanks to its lightweight composite construction, it is quiet and powerful thanks to its modern Ulpower aircraft engine with 150 hp, it can reach speeds of up to 180 km/h.
It is incredibly maneuverable and rigid – the equivalent of a of a high-performance sports car. Its excellent performance and semi-rigid rotor design allow it to achieve excellent results.
– automatic governor with RPM corelator
– full cowlings with big luggage compartment
– UL Power aviation engine
– glasscocpit avionics GARMIN GX3
– 3 axis autopilot
– modern luxury interior
– High Inertia Carbon Rotor peaceful 100% autorotation
– new modern instruments panel
– heater oil/water exchanger
ARGO AH-22 has enough space to take two people on board.
It is powered by a modern150 hp UL Power engine or 160 HP ROTAX 916 iS
AH-22 is made for private owners, completely changing the previous
reality of helicopter operating costs. Calendar-based depreciation is essentially eliminated thanks to a long 2,000-hour TBO.
The engine is the most important, it is light and, powerful, designed as an aircraft engine with all systems doubled, it runs at a low speed of 3200- 3500 RPM, for a long life. ARGO AH 2.2. uses drive belts transmission from Robinson, proven and long life. Another key factor is the engine fairing. Airflow tests in the wind tunnel showed large disturbances forming behind the helicopters without engine cowlings, which limited speed and caused shimmying at higher speeds. The narrow engine fairing integrated into the cabin and large luggage compartment is a step forward.
Main rotor, blades made of carbon fiber with the center of gravity distributed toward the blade tip, the so-called High Inertia rotor, making autorotation much easier and safer, the blades have a leading edge made of metal. Also worth mentioning is the adjustable speed controller (governor), which works integrated with the mechanical correlator with possible power adjustment in the range of 300 RPM.
ARGO AH 2.2 has nice interiors and modern avionics built into the ergonomic instrument panel. Integrated active safety systems strobe lights that work together with the FLARM Airborne Warning System. New composite bucket ergonomic seats, premium leather and alcantara trim materials and GARMIN with 3-axis autopilot complete the package.
– Delivers high end safety for private owner-operators by exceeding the highest certification standards and delivering an aircraft focused on the needs of inexperienced, or infrequently flying private pilots
– Each aircraft is backed by an industry-leading 2,000-hour and 3 year nose-to-tail warranty
– Modern, high performance, and cost-effective aircraft
– Affordable purchase price
– Dramatically lower operating costs
– Owner-operator can be approved to perform preventative maintenance
– High long-term resale value
– Calendar depreciation eliminated
– Factory-built
– Comprehensive hands-on factory training
– Flexibility for owner and factory to update aircraft with advanced features
